Setup ETL schema for an implementation

Enabling/Disabling

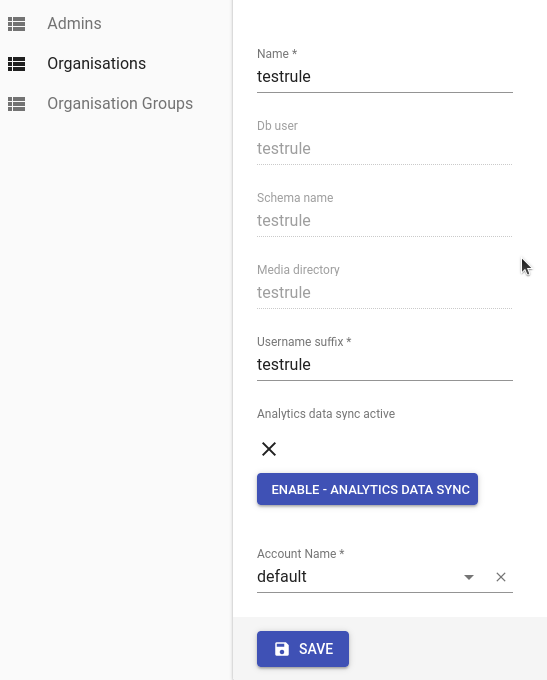

Enabling Analytics via Admin view in Webapp

ETL enabling and disabling for an organisation has now been changed to function via APIs called from the webapp. The act of enabling analytics for an org via the webapp admin view also creates the required job and schedules it to run immediately and every hour from then on (on a best effort basis*).

Ad hoc runs
If there is a need to run ETL for an organisation in an ad hoc fashion (to check if fixes to broken ETL for an org are working for example), you can disable and then enable analytics for that org. This will remove the previously existing job for the org and create a new one that will run immediately (within a minute on a best effort basis*).

Note: This does not recreate the ETL schema for the org. Follow the steps below to recreate the schema if required.

Best effort basis
Subject to available resources on the server and currently running jobs if any.

Recreating ETL schema for an organisation
Clearing ETL schema and rows corresponding to it in the database. The next run of the ETL process will recreate the schema and database.

Steps: (please note if you are recreating for an organisation that uses reporting views then after recreation also generate the reporting views)

Disable ETL for the org using the screen in the previous section in the webapp.

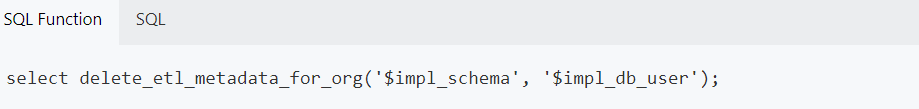

For standalone organizations

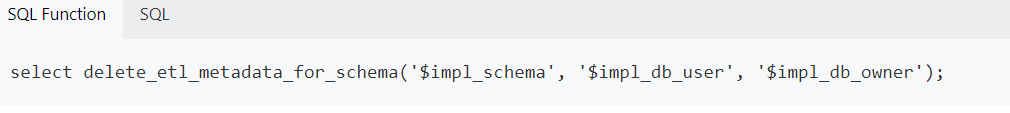

For organization groups

Enable ETl for the org using the screen in the previous section in the webapp.

Subject Type, Program and Encounter Type names

ETL service tries to automatically create the table names based on the subject type, program and encounter type names. Since these are also namespaced the names for these tables are as long as possible in postgres to support uniqueness. But there could still be clash in the names due to which the ETL process may fail to create tables. To ensure that this doesn't happen please ensure that the first six characters for the following are not the same. Please note that it is scoped, i.e. e.g. you can have same starting six characters for two encounter types under different programs.

two encounter types within same program
two encounter types within same subject type
two programs inside the same subject type
